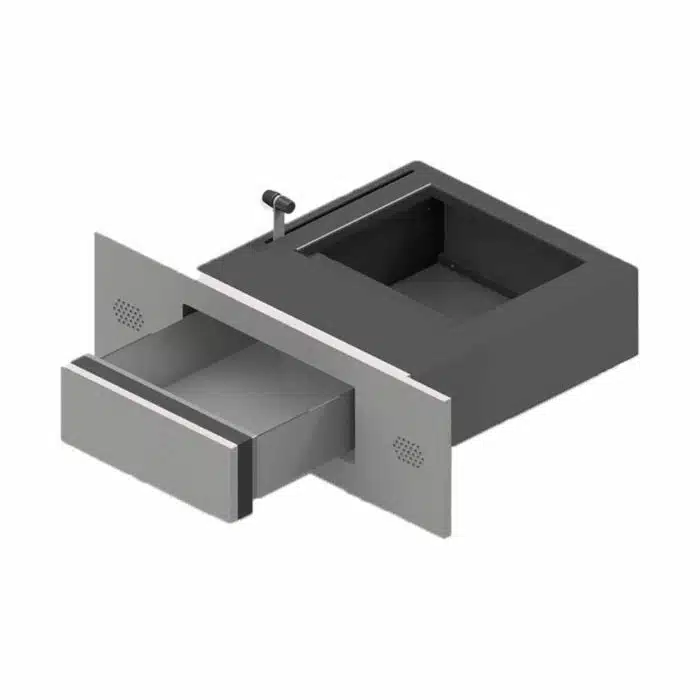

Pass-through tray for facades P7195/FB4


Weight: 25 kg

External dimensions: 235 x 920 x 700 mm
(Height x Width x Depth)

Internal dimensions: x x mm
(Height x Width x Depth)

Capacity: l

Ask for more information Download in PDF

    Nombre (*)
    Tu correo electrónico (*)

    SKU: 8435616303344 Category:

    Pass-through tray for facades P7195/FB4

    Characteristics Pass-through tray for facades P7195/FB4:

    External dimensions: 235 x 920 x 700 mm (Height x Width x Depth)

    Weight: 25 kg

    Outer Size Dimensions: 178 x 670 x 493 mm mm (Height x Width x Depth)

    Wall opening Dimensions: 106 x 460 (Width x Depth)

    Strength of wall above max. 90 mm

    Solid steel construction with abrasion-resistant structure lacquering (RAL 9005, Jet black)

    The front cover is made from brushed stainless as standard version.

    Possible options:

    P 7195, without integrated intercom system

    P 7195/S, with adapted dimensions of blind

    The unit is operated manually. By simply using the respective hand lever, the trays can be moved to the outside and back again. They both lock in their end positions.

    Bullet-Proof Security:

    Bulletproof according to DIN EN 1522: FB4-NS (also acc. to BGV C9 – UVV Kassen)

    Additional information
    Weight 25 kg
    Dimensions 700 × 920 × 235 mm
