Pass-through trays P7025


Weight: 7 kg

External dimensions: 144 x 476 x 642 mm
(Height x Width x Depth)

Internal dimensions: x x mm
(Height x Width x Depth)

Capacity: l

Ask for more information Download in PDF

    Nombre (*)
    Tu correo electrónico (*)

    SKU: 8435616303320 Category:

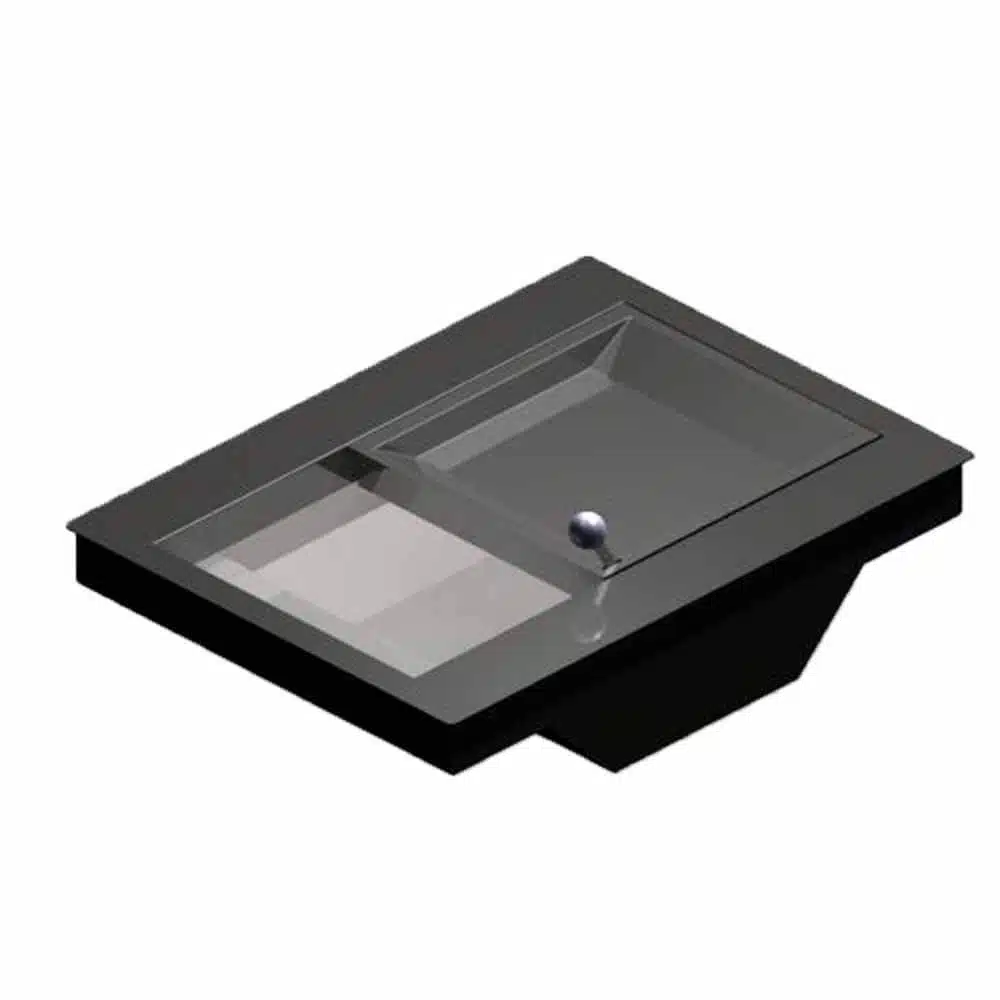

    Pass-through trays P7025

    Characteristics Pass-through trays P7025:

    External dimensions: 144 x 476 x 642 mm (Height x Width x Depth)

    Weight: 7 kg

    Upper Tray Dimensions: 30 x 270 x 215 mm (Height x Width x Depth)

    Lower Tray Dimensions: 90 x 270 x 225 mm (Height x Width x Depth)

    Fit opening Dimensions: 462 x 630 (Width x Depth)

    Solid steel construction with abrasion-resistant structure lacquering (RAL 9005, Jet black)

    The front cover is made from brushed stainless as standard version.

    Possible options:

    P- 7025 / VA (stainless steel V2a)

    P-7025 /S (Custom color)

    The unit is operated manually. By simply using the respective hand lever, the trays can be moved to the outside and back again. They both lock in their end positions.

    Additional information
    Weight 7 kg
    Dimensions 642 × 476 × 144 mm
