Certified Medication & Controlled Drugs Cabinet AEC1900-G4 with UNE EN 1143-1 Euro Grade 4 Certification
The Certified Medication & Controlled Drugs Cabinet AEC1900-G4 has been designed for the secure storage of controlled medicines, narcotics, opioids, high-value pharmaceutical products and sensitive documentation in hospitals, hospital pharmacies, laboratories and research facilities.
Thanks to its official UNE EN 1143-1 Euro Grade 4 certification and exceptional internal capacity, the AEC1900-G4 is one of the most comprehensive solutions available for organisations requiring advanced physical protection and efficient management of medicines subject to strict access control procedures.
Dimensions and capacity
- External dimensions: 1900 x 1400 x 680 mm
- Internal dimensions: 1800 x 1300 x 500 mm
- Approximate usable volume: 1170 litres
- Approximate weight: 1565 kg

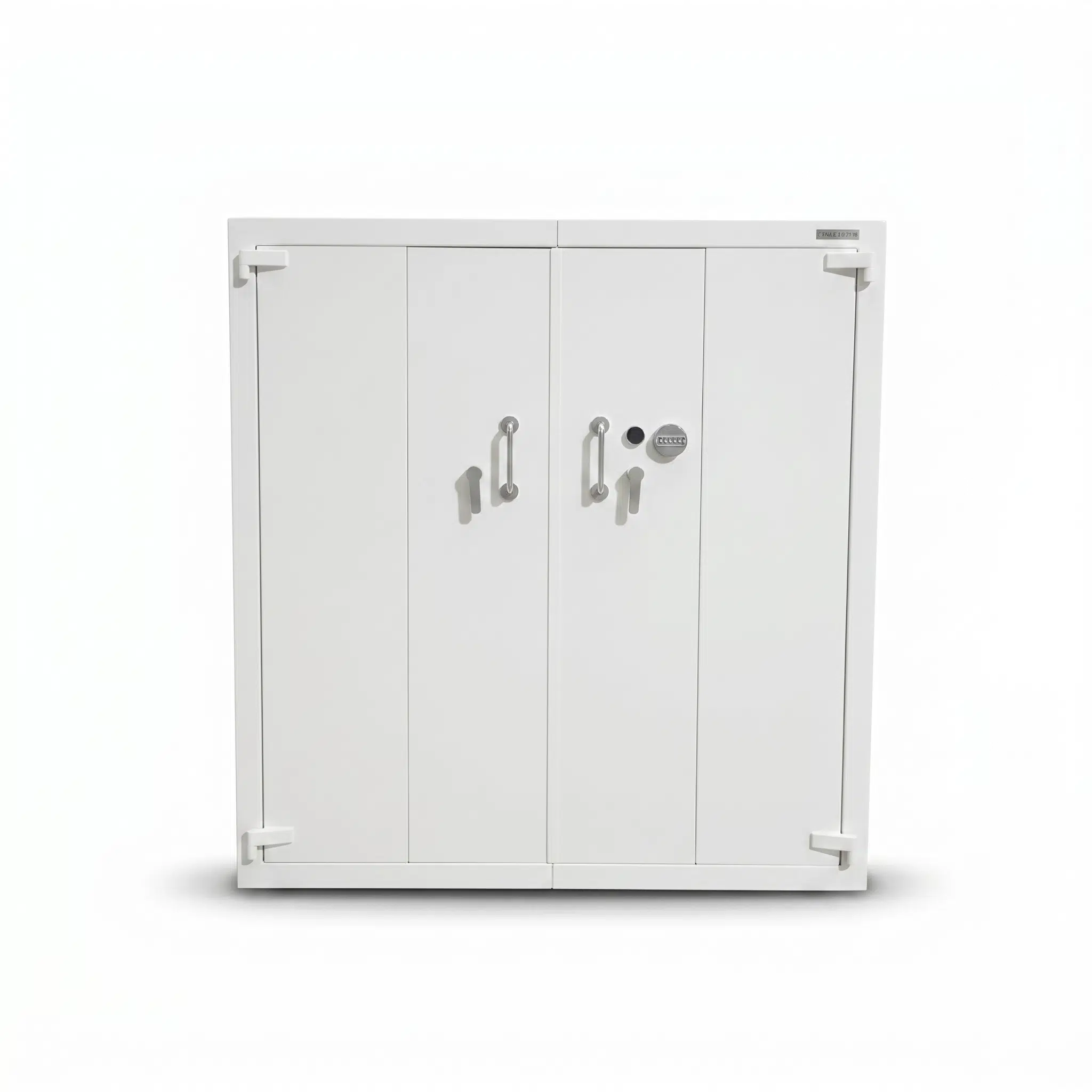

- Double-door configuration.
Its large internal capacity allows substantial quantities of medicines, pharmaceutical products and healthcare documentation to be stored while maintaining excellent organisation and accessibility.

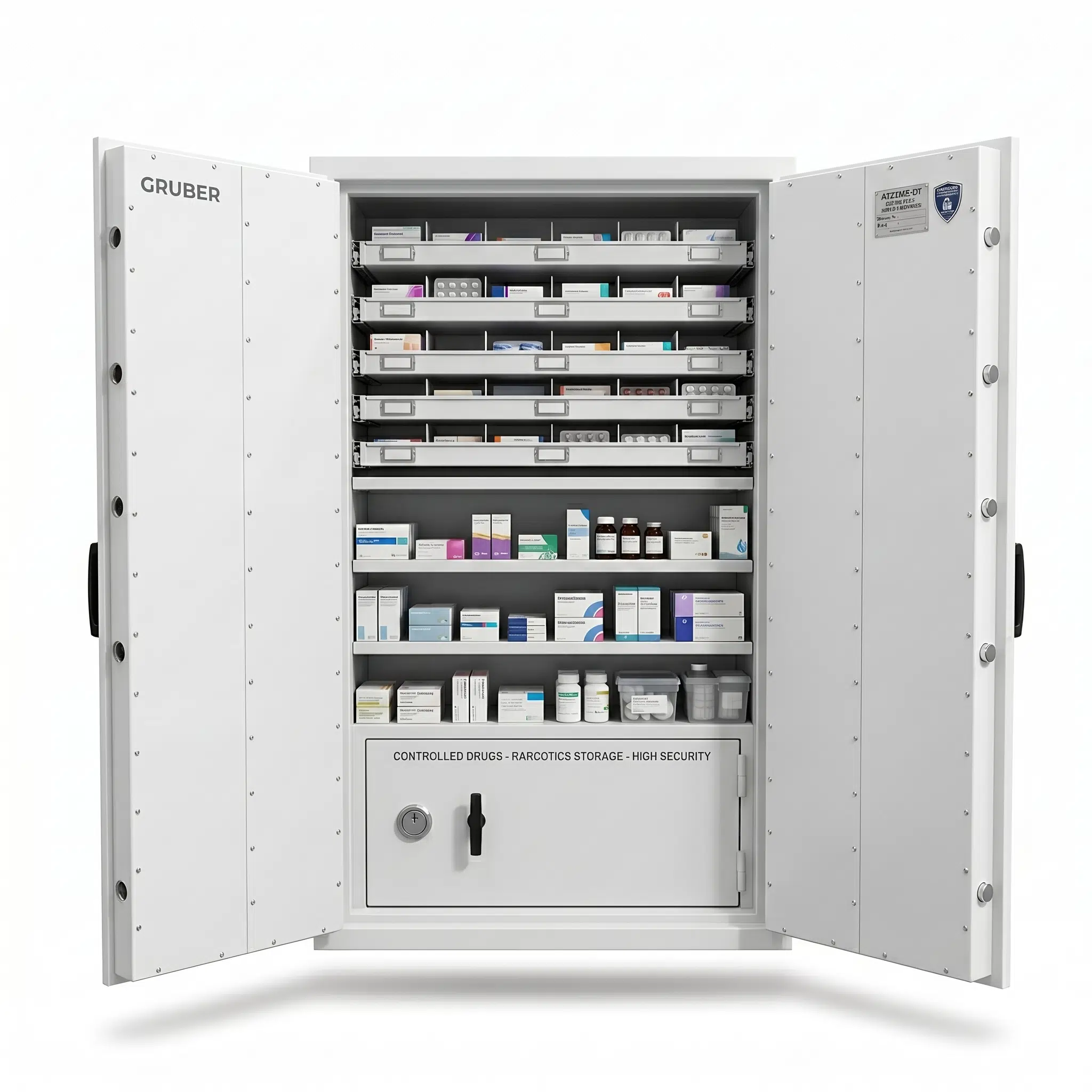

High-capacity pharmaceutical interior configuration
The AEC1900-G4 incorporates an interior layout specifically developed for hospitals and pharmaceutical facilities managing large volumes of medication.
- 6 full-extension telescopic trays.
- 4 height-adjustable shelves.
- 24 removable dividers.
- Front label holders for rapid identification.
- Anti-drop retention rails for medicines and pharmaceutical products.
- Independent lockable compartment.
This configuration facilitates the organisation of medicines by department, treatment programme, therapeutic category or access level.
Independent restricted-access compartment
The lower section incorporates a large independent compartment protected by its own lock for the storage of medicines requiring enhanced access control.
- Controlled drugs.
- Opioids.
- Narcotics.
- High-value pharmaceutical products.
- Confidential documentation.
UNE EN 1143-1 Euro Grade 4 Certification
The AEC1900-G4 is officially certified in accordance with UNE EN 1143-1 Euro Grade 4, one of the most demanding European standards for the protection of valuable assets and sensitive materials.
This certification confirms resistance against mechanical and thermal attacks tested under controlled laboratory conditions by accredited certification bodies.
High-security reinforced construction
- High-strength structural steel construction.
- Technical concrete filling reinforced with composite materials and metallic fibres.
- 50 mm total wall thickness.
- 130 mm door thickness.
- Designed for intensive professional use.
The combination of materials provides outstanding resistance against drilling, cutting, thermal attacks and forced entry attempts.
Certified locking system
- 2 VdS Class 2 certified locks.
- 2 integrated relocking systems.
- 6 solid steel locking bolts.
- 4 reinforced vertical locking bars.
- Door opening angle up to 180°.
The locking system provides uniform protection against direct attacks on the door and locking mechanisms.
Available locking configurations
- Key lock and certified mechanical lock.
- Key lock and certified electronic lock.
- Electronic lock with programmable time delay.
- Certified biometric lock.
- Electronic access control.
- Audit trail and opening records.
Available options
- Temperature monitoring sensor.
- Humidity monitoring sensor.
- Electronic access auditing.
- Custom interior configuration.
- Special compartmentalisation for controlled medicines.
Recommended applications
- Hospitals.
- Hospital pharmacies.
- Pharmaceutical laboratories.
- Research centres.
- Universities.
- Healthcare institutions.
- Veterinary reference centres.
- Pharmaceutical distribution facilities.
Key advantages
- UNE EN 1143-1 Euro Grade 4 certification.
- Designed for medicines and controlled drugs.
- 6 full-extension telescopic trays.
- 4 adjustable shelves.
- Independent lockable compartment.
- Large 1170-litre internal capacity.
- Professional pharmaceutical storage configuration.
- Ideal for large hospitals and hospital pharmacies.
Certified storage solutions for medicines and controlled drugs
Discover our complete range of Medication & Controlled Drugs Cabinets developed for the secure storage of medicines and restricted-access pharmaceutical products.
You can also explore our range of Euro Grade 4 Safes certified according to UNE EN 1143-1 for applications requiring the highest levels of physical protection.
