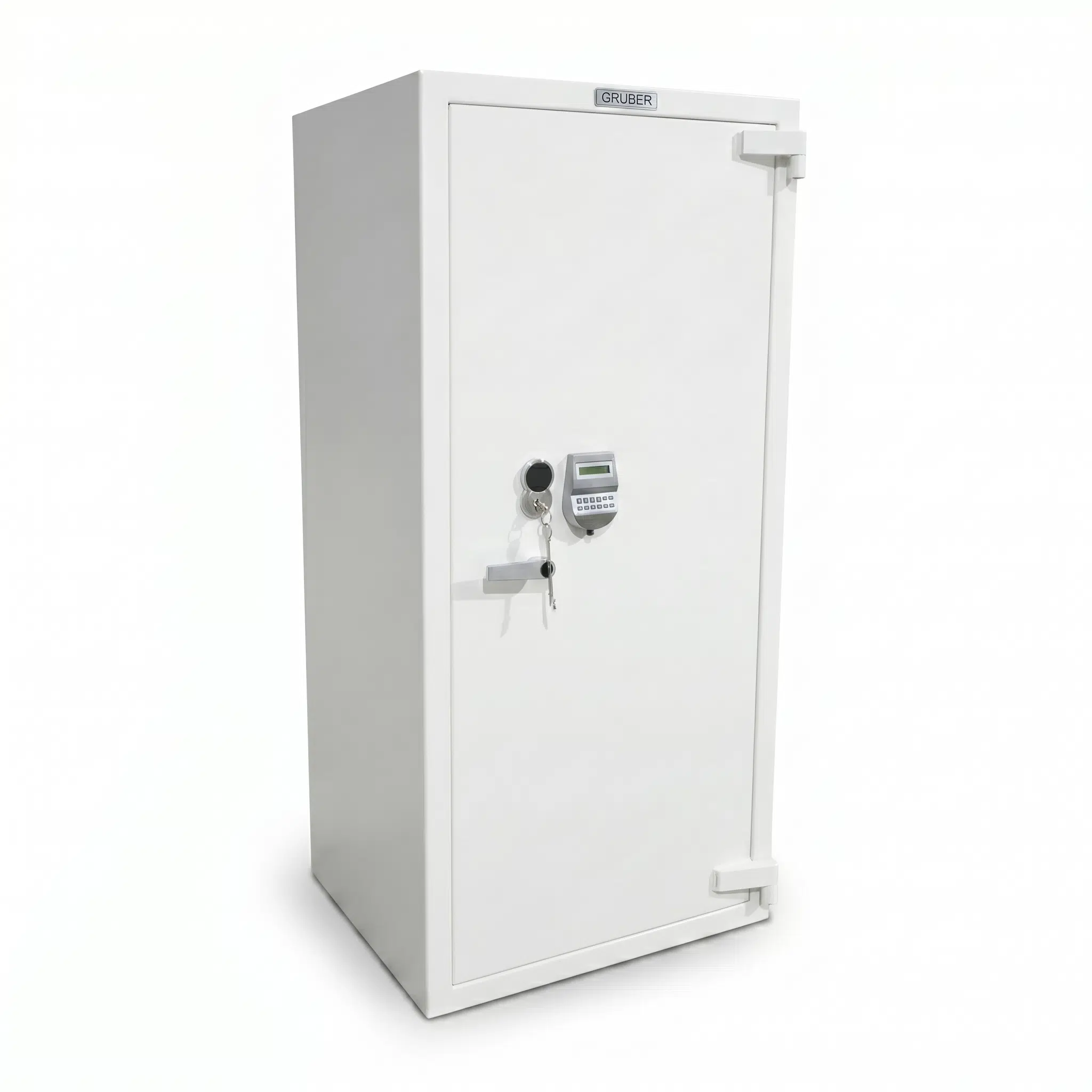

Certified Medication & Controlled Drugs Cabinet AEC1610-G4 with UNE EN 1143-1 Euro Grade 4 Certification
The Certified Medication & Controlled Drugs Cabinet AEC1610-G4 has been developed as a professional storage solution for controlled medicines, narcotics, opioids, high-value pharmaceutical products and sensitive documentation in hospitals, hospital pharmacies, laboratories and research facilities.
Its official UNE EN 1143-1 Euro Grade 4 certification provides exceptional resistance against mechanical and thermal attacks, making it the ideal solution for organisations requiring the highest levels of physical protection for restricted-access pharmaceutical products.
Dimensions and capacity
- External dimensions: 1610 x 750 x 660 mm
- Internal dimensions: 1510 x 650 x 480 mm
- Approximate usable volume: 471 litres
- Approximate weight: 1050 kg
Its generous internal capacity allows large quantities of medicines, pharmaceutical products and restricted substances to be stored while maintaining excellent organisation and accessibility.

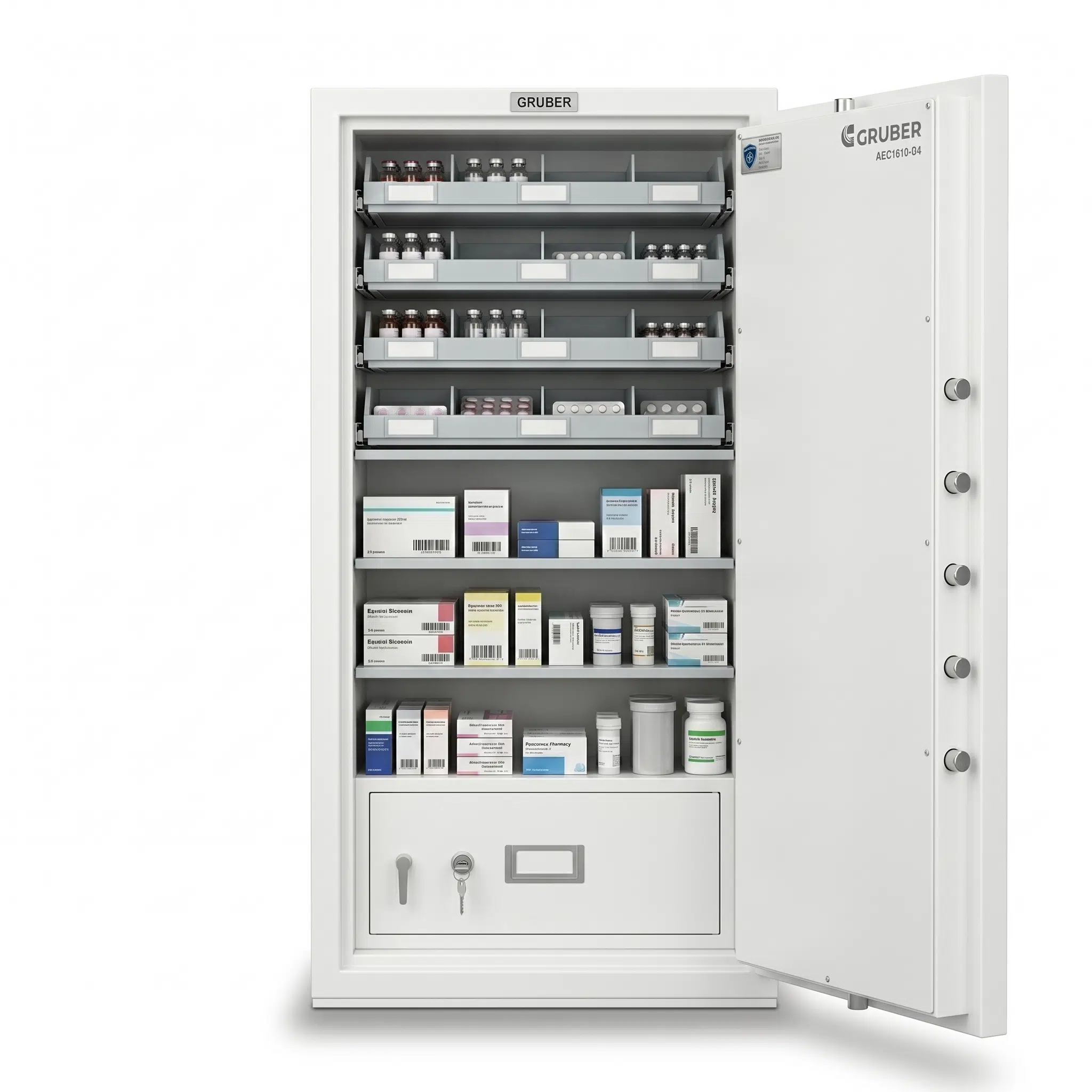

Professional pharmaceutical interior configuration
The AEC1610-G4 incorporates an interior layout specifically designed to facilitate the classification, organisation and control of medicines in demanding healthcare environments.
- 4 full-extension telescopic trays.
- 3 height-adjustable shelves.
- 16 removable dividers.
- Front label holders for rapid identification.
- Anti-drop retention rails for medicines and pharmaceutical products.
- Independent lockable compartment.
This configuration allows medicines to be organised by therapeutic category, department, treatment programme or access level.
Independent restricted-access compartment
The lower section incorporates an independent compartment protected by its own lock for medicines requiring enhanced supervision and access control.
- Controlled drugs.
- Opioids.
- Narcotics.
- High-value pharmaceutical products.
- Sensitive documentation.
UNE EN 1143-1 Euro Grade 4 Certification
The AEC1610-G4 is officially certified in accordance with UNE EN 1143-1 Euro Grade 4, one of the most demanding European standards for the protection of valuable assets and sensitive materials.
This certification confirms resistance against mechanical and thermal attacks tested under controlled laboratory conditions by accredited certification bodies.
High-security reinforced construction
- High-strength steel construction.
- Technical concrete filling reinforced with composite materials and metallic fibres.
- 50 mm total wall thickness.
- 130 mm door thickness.
- Designed for intensive professional use.
The combination of high-resistance materials provides outstanding protection against drilling, cutting and thermal attacks.
Certified locking system
- 2 VdS Class 2 certified locks.
- 2 integrated relocking systems.
- 5 solid steel locking bolts.
- 2 reinforced vertical locking bars.
- Door opening angle up to 180°.
The locking system provides excellent resistance against unauthorised access attempts and direct attacks on the door and locking mechanisms.
Available locking configurations
- Key lock and certified mechanical lock.
- Key lock and certified electronic lock.
- Electronic lock with programmable time delay.
- Certified biometric lock.
- Access control system.
- Audit trail and opening records.
Available options
- Temperature monitoring sensor.
- Humidity monitoring sensor.
- Electronic access auditing.
- Custom interior configuration.
- Special compartmentalisation for controlled medicines.
Recommended applications
- Hospitals.
- Hospital pharmacies.
- Pharmaceutical laboratories.
- Research facilities.
- Specialised healthcare centres.
- Public healthcare institutions.
- Veterinary reference centres.
Key advantages
- UNE EN 1143-1 Euro Grade 4 certification.
- Designed for medicines and controlled drugs.
- 4 full-extension telescopic trays.
- 3 adjustable shelves.
- Independent lockable compartment.
- Professional pharmaceutical storage configuration.
- Outstanding resistance against mechanical and thermal attacks.
- Ideal for hospitals and hospital pharmacies.
Certified storage solutions for medicines and controlled drugs
Discover our complete range of Medication & Controlled Drugs Cabinets developed for the secure storage of restricted-access pharmaceutical products.
You can also explore our range of Euro Grade 4 Safes certified according to UNE EN 1143-1 for applications requiring the highest levels of physical protection.
