Transfer Trays for counter P7028


Weight: 7 kg

External dimensions: 157 x 540 x 440 mm
(Height x Width x Depth)

Internal dimensions: x x mm
(Height x Width x Depth)

Capacity: l

Ask for more information Download in PDF

    Nombre (*)
    Tu correo electrónico (*)

    SKU: 8435616303337 Category:

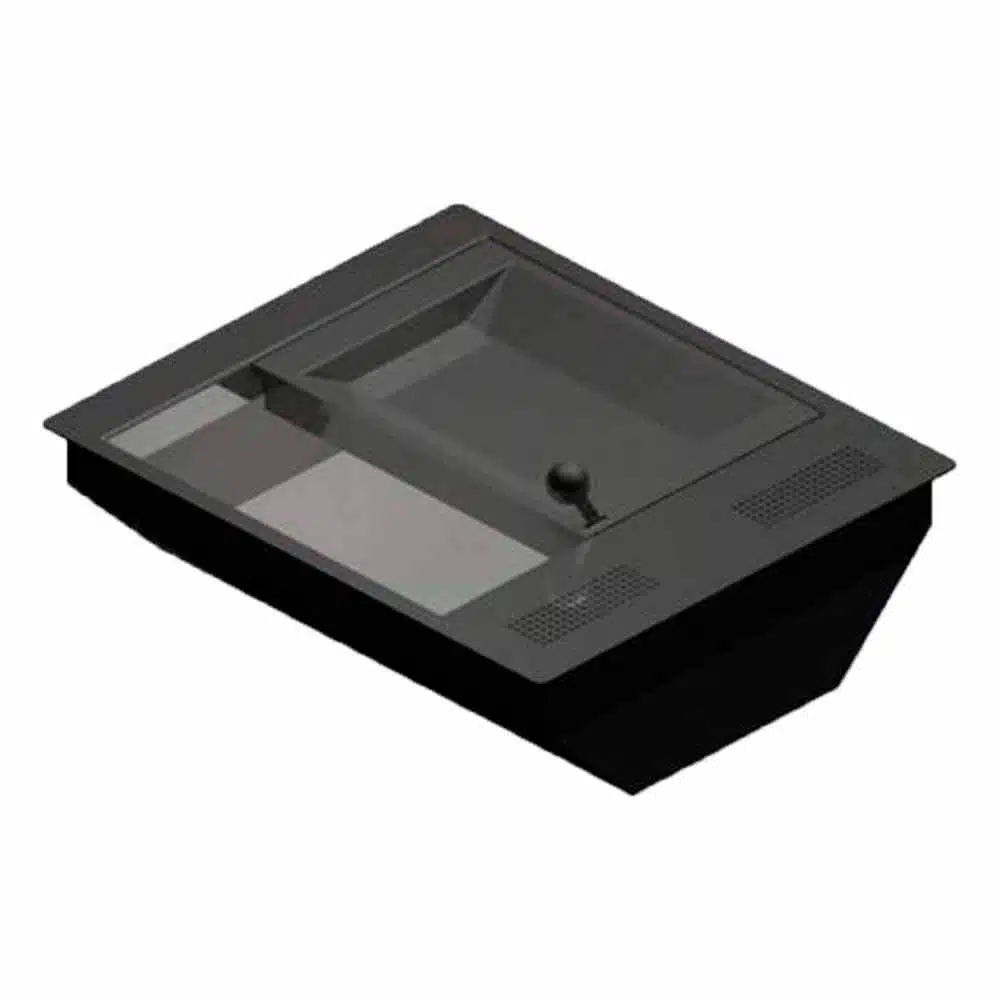

    Transfer Trays for counter P7028

    Characteristics Transfer Trays for counter P7028:

    External dimensions: 157 x 540 x 440 mm (Height x Width x Depth)

    Weight: 7 kg

    Payment tray: 30 x 295 x 140 mm (Height x Width x Depth)

    Pass-through: 108 x 295 x 220 mm (Height x Width x Depth)

    Cash-desk cut-out: 520 x 420 mm (Width x Depth)

    Outer dimensions: 157 x 540 x 440 mm (Height x Width x Depth)

    Solid steel construction with abrasion-resistant structure lacquering (RAL 9005, Jet black)

    The front cover is made from brushed stainless as standard version.

    Possible options:

    P 7028/VA, with cover frame in stainless steel V2a (Item No.: 114007)

    P 7028/S, with cover frame in special RAL-colour according to customer’s request

    The unit is operated manually. By simply using the respective hand lever, the trays can be moved to the outside and back again. They both lock in their end positions.

    Bullet-Proof Security:

    P 7028 corresponds to the Accident Prevention Regulations of the German Administrative Professional Association BGV C9 (UVV-Kassen).

    Additional information
    Weight 7 kg
    Dimensions 440 × 540 × 157 mm
